Wall Mounting
Note:
1 Calculated based on peak power and measured sensitivity
2 RMS: pink noise with 6dB crest factor, 12dB BW @40Hz – 400 Hz, 2 Hr/step until break, single unit

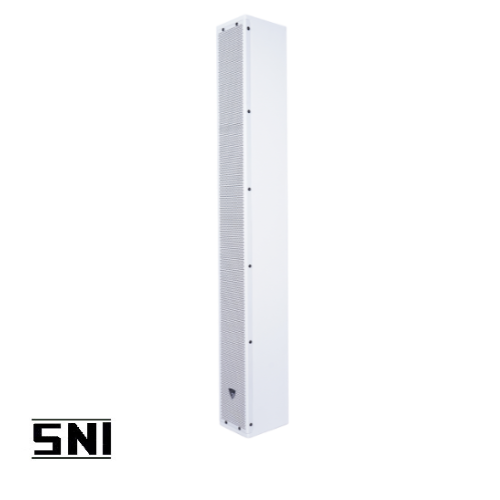

SA-39
Slim Array Speaker
SPECIFICATION
| Frequency Response (±3 dB) | : 180 Hz – 15 kHz |
| Horizontal Coverage Angle (-6 dB) | : 100° |
| Vertical Coverage Angle (-6 dB) | : 5° |
| System Sensitivity (1m/1w)¹ | : 95 dB |
| Low Impedance | : 8 Ohm |
| 100 V line | : 167 Ohm (60 W), 220 Ohm (30 W), 500 Ohm (20 W), 1 Ohm (10 W): Selectable |
| Power Rating (RMS / Program / Peak)² | : 225 / 450 / 900 Watt |
| TRANSDUCER LF Driver | : RM-39, 3″, Ferrite, 20.4 mm VC |
| PHYSICAL Enclosure Material Finish Input Connector | : 9mm & 12mm MDF : Black / White Painting : Push Terminal |
| Dimension (H x W x D) | : 955 x 106 x 131 mm (net) |
| : 1100 x 189 x 224 mm (shipping) | |
| Weight (Net/Shipping³) | : 9.2 / 11.5 Kg |
| Mounting & Suspension | : Wall Bracket |
1 Calculated based on peak power and measured sensitivity
2 RMS: pink noise with 6dB crest factor, 12dB BW @40Hz – 400 Hz, 2 Hr/step until break, single unit
