Wall Mounting

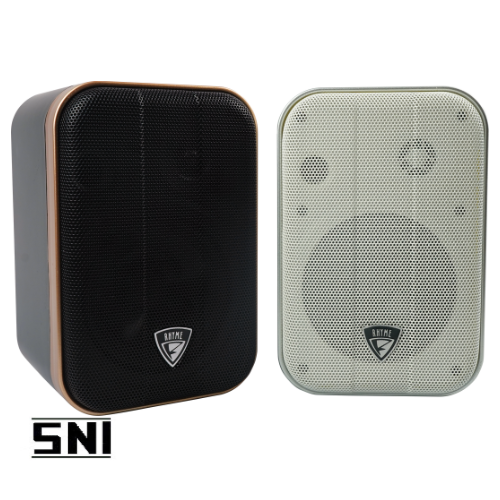

MP-1-Mk1
Single 5'' 2-way, Full Range
SPECIFICATION
| Frequency Range (-10 dB) | : 90 Hz – 20 kHz |
| Frequency Response (±3 dB) | : 110 Hz – 20 kHz |
| Horizontal Coverage Angle (-6 dB) | : 90° |
| Vertical Coverage Angle (-6 dB) | : 90° |
| Crossover Modes | : Passive |
| System Sensitivity (1m/1w) | : 87 dB |
| Maximum SPL¹ | : 113 dB |
| System Nominal Impedance | : 8 Ohm |
| Power Rating (RMS / Program / Peak)² | : 100 / 200 / 400 Watt |
| TRANSDUCER HF Driver LF Driver | : TW MP-1, PEI Dome, Ferrite,13mm VC, Reflector : MP-1, 5”, Paper coating foam Edge, ferrite, 25mm VC |
| PHYSICAL Enclosure Material Finish Input Connector | : Plastic Injection (ABS) : Black/White Painting : Push Terminal |
| Dimension (H x W x D) | : 210.5 x 140 x 136 mm (net) |
| : 350 x 277 x 166 mm (shipping) | |
| Weight (Net/Shipping³) | : 1.8 / 5 Kg |
| Mounting & Suspension | : Wall Mounted Kits; Brackets can be tilted 40 degrees and pivoted through a range of 120 degrees |
Note:
1 Average value from average of SPL and the highest of SPL
