Ceiling Speaker
Note:
1 Average value from average of SPL and the highest of SPL
2 Power handling test with AES standard at low impedance (without trafo)

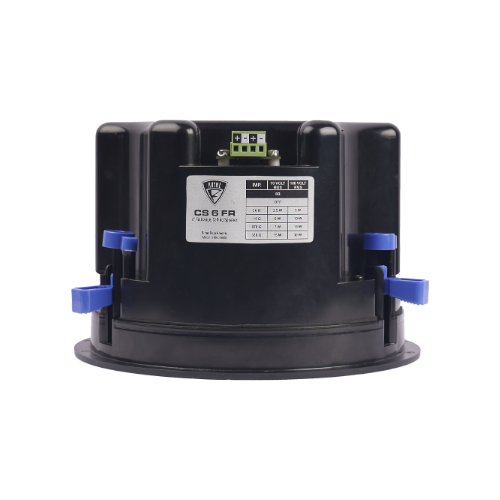

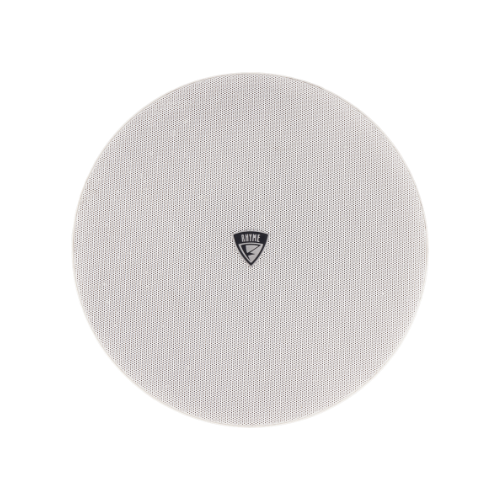

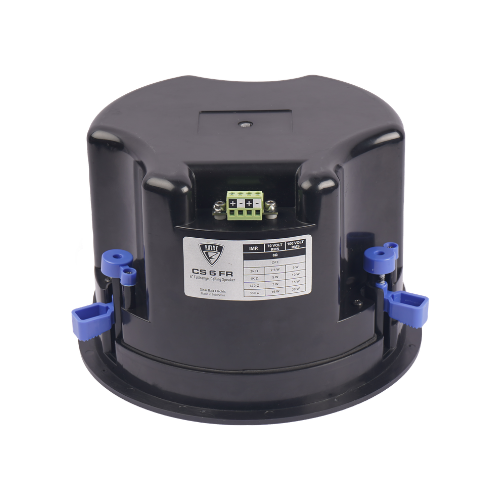

CS 6 FR
Single 6'' Bass Reflex,
Fullrange ceiling speaker with chamber
SPECIFICATION
| Frequency Range (-10 dB) | : 80 Hz – 19 KHz |
| Frequency Response (±3 dB) | : 120 Hz – 15 KHz |
| Horizontal Coverage Angle (-6 dB) | : 120° |
| Vertical Coverage Angle (-6 dB) | : 120° |
| Crossover Modes | : – |
| System Sensitivity (1m/1w) | : 90 dB |
| Maximum SPL¹ | : 115 dB |
| System Nominal Impedance | : 8 Ohm |
| Power Rating (RMS / Program / Peak)² | : 80 / 160 / 320 Watt |
| TRANSDUCER | |

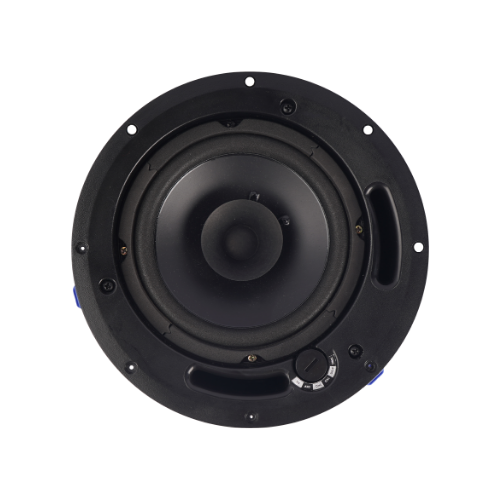

| LF Driver | : 6” CS FR, Paper coating with foam dipping edge, ferrite, 25mm VC |
| PHYSICAL | |
| Enclosure Material | : ABS |
| Finish | : Black – White Painting |
| Input Connector | : Block Terminal |
| Dimension (H x W x D) | : ø248 x 155t mm (net) |
| : 308 x 308 x 203 mm (shipping) | |
| Weight (Net/Shipping) | : 1.75 / 2.19 Kg |
| Mounting & Suspension | : Tile bracker or universal support bracket for drop ceiling (ceiling with chamber/backcan) |
1 Average value from average of SPL and the highest of SPL
2 Power handling test with AES standard at low impedance (without trafo)
