Ceiling Speaker
Note:
1 Average value from average of SPL and the highest of SPL
2 Power handling test with AES standard at low impedance (without trafo)

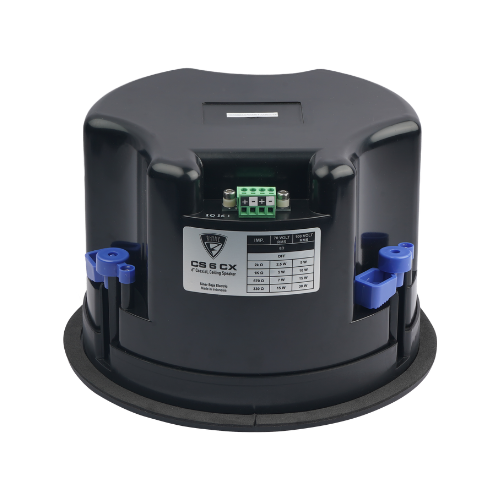

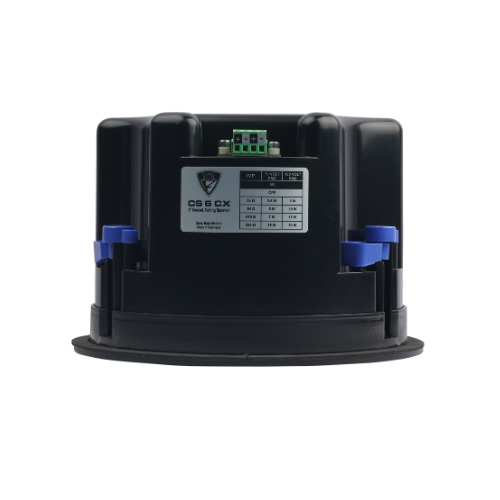

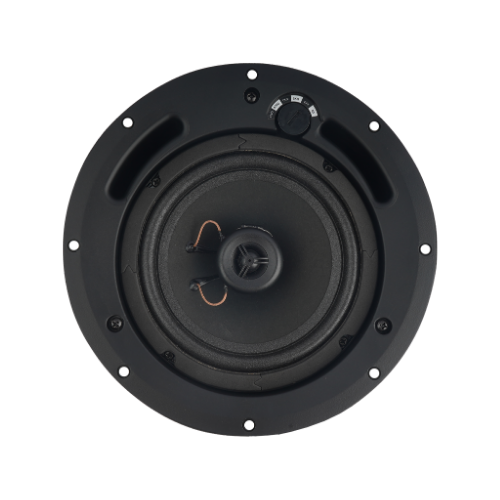

CS 6 CX
Coaxial Ceiling Speaker with Chamber
SPECIFICATION
| Frequency Range (-10 dB) | : 95 Hz – 19 KHz |
| Frequency Response (±3 dB) | : 100 Hz – 15 KHz |
| Horizontal Coverage Angle (-6 dB) | : 140° |
| Vertical Coverage Angle (-6 dB) | : 140° |
| Crossover Modes | : – |
| System Sensitivity (1m/1w) | : 92 dB |
| Maximum SPL¹ | : 116 dB |
| System Nominal Impedance | : 8 Ohm |
| Power Rating (RMS / Program / Peak)² | : 60 / 120 / 240 Watt |
| TRANSDUCER | |
| HF Driver | : TW CS 6 CX, Cloth dome, Ferrite, 13 mm VC |
| LF Driver | : 6” CS FR, Paper coating with foam dipping edge, ferrite, 25mm VC |
| PHYSICAL | |
| Enclosure Material | : ABS |
| Finish | : Black – White Painting |
| Input Connector | : Block Terminal |
| Dimension (H x W x D) | : ø248 x 155t mm (net) |
| : 308 x 308 x 203 mm (shipping) | |
| Weight (Net/Shipping) | : 1.85 / 2.29 Kg |
| Mounting & Suspension | : Tile bracker or universal support bracket for drop ceiling (ceiling with chamber/backcan) |
1 Average value from average of SPL and the highest of SPL
2 Power handling test with AES standard at low impedance (without trafo)
